Products

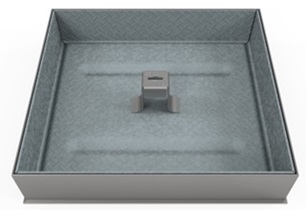

HYDRA PLUS 75
Access cover made of galvanized steel with hydraulic seal and 75 mm recess.
Conic shape for easy removal and maintenance.
Conic shape for easy removal and maintenance.
Features
- Recessed cover for filling;
- Manufactured from hot deep galvanized steel;
- Made of one stamped galvanized steel piece for improved rigidity and safety;
- Tapered design allows the easy removal and maintenance;
- Hydraulic seal to stop the passage of odors.
| Reference | Model | External Dimensions | Clear Open | Internal depth | Height | Loading Class |
| 511.R8.40 | 400 | 370 x 370 | 300 x 300 | 75 | 90 | C250 |
| 511.R8.50 | 500 | 470 x 470 | 400 x 400 | 75 | 90 | C250 |
| 511.R8.60 | 600 | 570 x 570 | 500 x 500 | 75 | 90 | C250 |
| 511.R8.70 | 700 | 670 x 670 | 600 x 600 | 75 | 90 | B125 |
CAPA reserves the right to make changes to the product without prior notice.
