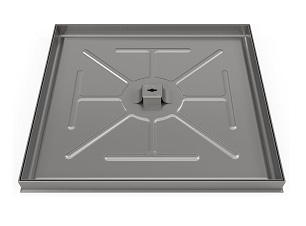

Hydra 25
Access cover made of galvanized steel with hydraulic seal and 25 mm recess for concrete or ceramic tile finishing.
Suitable for both indoor and outdoor areas, has thin edges that allow the cover to become almost invisible.
Conic shape for easy removal and maintenance.
Suitable for both indoor and outdoor areas, has thin edges that allow the cover to become almost invisible.
Conic shape for easy removal and maintenance.
Features
- Recessed cover for filling;
- Manufactured from galvanized steel (EN 10346);
- Made of one stamped galvanized steel piece for improved rigidity and safety;
- Tapered design allows the easy removal and maintenance;
- Hydraulic seal to stop the passage of odors.
| Reference | Model | External Dimensions | Clear Open | Internal depth | Height | Loading Class |
| 510.R3.30 | 300 | 270 x 270 | 200 x 200 | 25 | 40 | A15 |
| 510.R3.40 | 400 | 370 x 370 | 300 x 300 | 25 | 40 | A15 |
| 510.r3.50 | 500 | 470 x 470 | 400 x 400 | 25 | 40 | A15 |
| 510.R3.60 | 600 | 570 x 570 | 500 x 500 | 25 | 40 | A15 |
| 510.R3.70 | 700 | 670 x 670 | 600 x 600 | 25 | 40 | A15 |
| 510.R3.80 | 800 | 770 x 770 | 700 x 700 | 25 | 40 | A15 |
CAPA reserves the right to make changes to the product without prior notice.
